MINI KSZD KOMBINED BOX, FROM MSZ EN 671-1

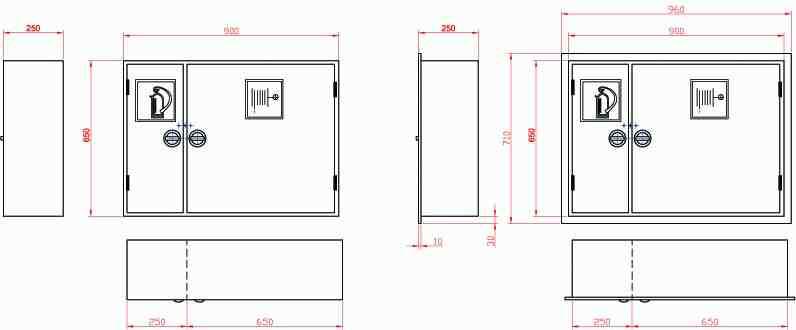

Mounted on the wall                                     Built in the wall

TYPE
KSZ-D2m  mounted on the wall with turning device
KSZ-D2mk  mounted on the wall with turning device end rung
KSZ-D1m  built in the wall with turning device
KSZ-D1mk  built in the wall with turning device end rung
KSZ-D2mü mounted on the wall with turning device end glass
KSZ-D2mkü mounted on the wall with turning device end glass, rung
KSZ-D1mü built in the wall with turning device end glass
KSZ-D1mkü built in the wall with turning device end glass, rung
KSZ-D2m-20  mounted on the wall, with 20 fm hourse
KSZ-D1m-20  built in the wall, with 20 fm hourse
KSZ-D2mü-20 mounted on the wall, with 20 fm hourse end glass
KSZ-D1mü-20 built in the wall, with 20 fm hourse end glass

DIMENSIONS
TYPE Height Width Depht Weight
  mm mm mm kg
KSZ-D2m 650 900 250 69
KSZ-D2mk 650 900 250 66
KSZ-D1m 650 900 250 71
KSZ-D1mk 650 900 250 68
KSZ-D2mü 650 900 250 69
KSZ-D2mkü 650 900 250 66
KSZ-D1mü 650 900 250 71
KSZ-D1mkü 650 900 250 68
KSZ-D2m-20 600 850 250 67
KSZ-D1m-20 600 850 250 69
KSZ-D2mü-20 600 850 250 67
KSZ-D1mü-20 600 850 250 69
The given weight understadt along with accessorys.
