KSZD COMBINED BOX TYPE “D”, FROM MSZ EN 671-1
| TYPE | ||||
| KSZ-D2 | mounted on the wall with turning device | |||
| KSZ-D2k | mounted on the wall with turning device end rung | |||
| KSZ-D1 | built in the wall with turning device | |||
| KSZ-D1k | built in the wall with turning device end rung | |||
| KSZ-D2ü | mounted on the wall with turning device end glass | |||
| KSZ-D2kü | mounted on the wall with turning device end glass, rung | |||
| KSZ-D1ü | built in the wall with turning device end glass | |||
| KSZ-D1kü | built in the wall with turning device end glass, rung | |||
| KSZ-D2-20 | mounted on the wall, with 20 fm hourse | |||
| KSZ-D1-20 | built in the wall, with 20 fm hourse | |||
| KSZ-D2ü-20 | mounted on the wall, with 20 fm hourse end glass | |||
| KSZ-D1ü-20 | built in the wall, with 20 fm hourse end glass | |||

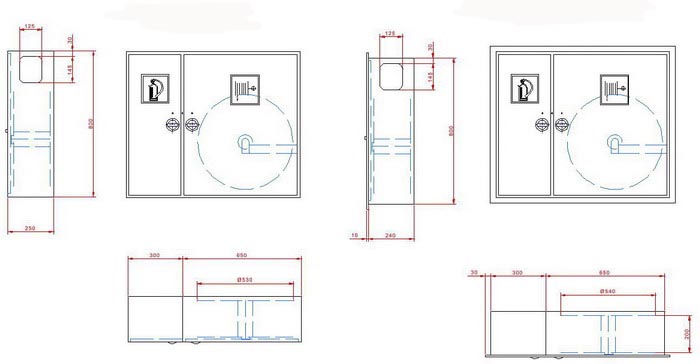

| DIMENSIONS | ||||
| TYPE | Height | Width | Depht | Weight |
| mm | mm | mm | kg | |
| KSZ-D2 | 800 | 950 | 250 | 73 |
| KSZ-D2k | 800 | 950 | 250 | 70 |
| KSZ-D1 | 800 | 950 | 250 | 75 |
| KSZ-D1k | 800 | 950 | 250 | 72 |
| KSZ-D2ü | 800 | 950 | 250 | 73 |
| KSZ-D2kü | 800 | 950 | 250 | 70 |
| KSZ-D1ü | 800 | 950 | 250 | 75 |
| KSZ-D1kü | 800 | 950 | 250 | 72 |
| KSZ-D2-20 | 750 | 900 | 250 | 71 |
| KSZ-D1-20 | 750 | 900 | 250 | 73 |
| KSZ-D2ü-20 | 750 | 900 | 250 | 71 |
| KSZ-D1ü-20 | 750 | 900 | 250 | 73 |
| The given weight understadt along with accessorys. | ||||
