KSZ-Da COMBINED BOX TYPE “D”,FROM MSZ EN 671-1

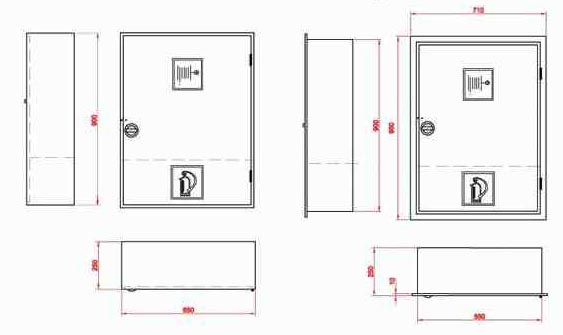

Mounted on the wall                                     Built in the wall

TYPE
KSZ-D2a  mounted on the wall with turning device
KSZ-D2ak  mounted on the wall with turning device end rung
KSZ-D1a  built in the wall with turning device
KSZ-D1ak  built in the wall with turning device end rung
KSZ-D2aü mounted on the wall with turning device end glass
KSZ-D2akü mounted on the wall with turning device end glass, rung
KSZ-D1aü built in the wall with turning device end glass
KSZ-D1akü built in the wall with turning device end glass, rung
KSZ-D2a-20  mounted on the wall, with 20 fm hourse
KSZ-D1a-20  built in the wall, with 20 fm hourse
KSZ-D2aü-20 mounted on the wall, with 20 fm hourse end glass
KSZ-D1aü-20 built in the wall, with 20 fm hourse end glass

DIMENSIONS
TYPE Height Width Depht Weight
  mm mm mm kg
KSZ-D2a 1050 650 250 65
KSZ-D2ak 1050 650 250 62
KSZ-D1a 1050 650 250 67
KSZ-D1ak 1050 650 250 64
KSZ-D2aü 1050 650 250 65
KSZ-D2akü 1050 650 250 62
KSZ-D1aü 1050 650 250 67
KSZ-D1akü 1050 650 250 64
KSZ-D2a-20 1000 600 250 63
KSZ-D1a-20 1000 600 250 65
KSZ-D2aü-20 1000 600 250 63
KSZ-D1aü-20 1000 600 250 65
The given weight understadt along with accessorys.
