HYDRANT BOX V1-D; V2-D; from MSZ EN 671-1

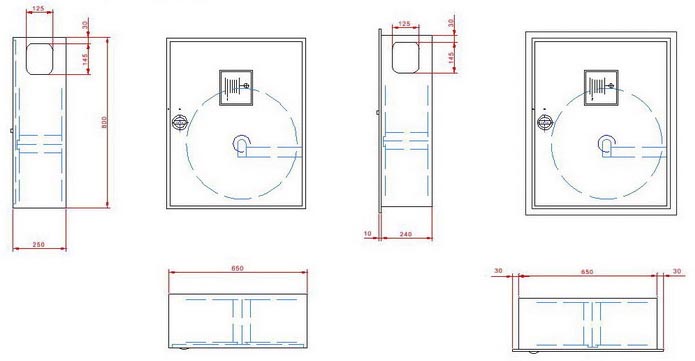

Mounted on the wall                                     Built in the wall

TYPE

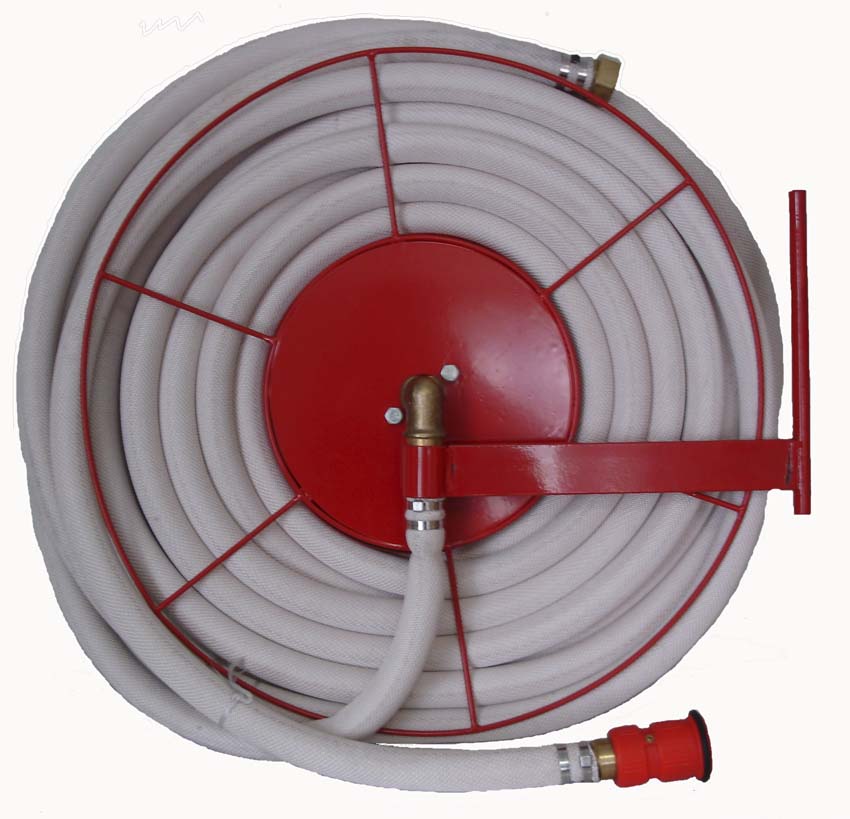

V2-D  mounted on the wall with turning device
V2-Dk  mounted on the wall with turning device end rung
V1-D  built in the wall with turning device
V1-Dk  built in the wall with turning device end rung
V2-Dü mounted on the wall with turning device end glass
V2-Dkü mounted on the wall with turning device end glass, rung
V1-Dü built in the wall with turning device end glass
V1-Dkü built in the wall with turning device end glass, rung
V2-D20  mounted on the wall, with 20 fm hourse
V1-D20  built in the wall, with 20 fm hourse
V2-D20-ü mounted on the wall, with 20 fm hourse end glass
V1-D20-ü built in the wall, with 20 fm hourse end glass

DIMENSIONS
TYPE Height Width Depht Weight
  mm mm mm kg
V2-D 800 650 250 46
V2-Dk 800 650 250 43
V1-D 800 650 250 48
V1-Dk 800 650 250 45
V2-Dü 800 650 250 48
V2-Dkü 800 650 250 45
V1-Dü 800 650 250 50
V1-Dkü 800 650 250 47
V2-D20 750 600 250 42
V1-D20 750 600 250 44
V2-D20-ü 750 600 250 44
V1-D20-ü 750 600 250 46
The given weight understadt along with accessorys.
