MINI HYDRANT BOX: V2-Dm, V-1Dm, from MSZ EN 671-1

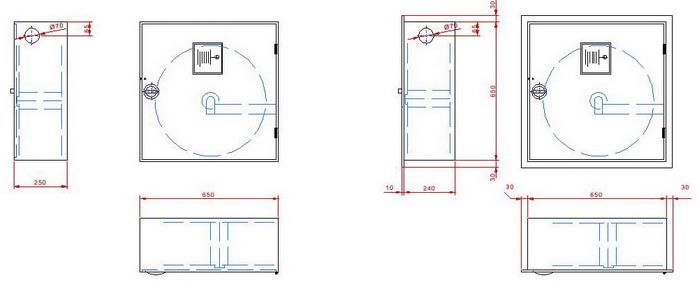

Mounted on the wall                                     Built in the wall

TYPE
V2-Dm  mounted on the wall with turning device
V2-Dmk  mounted on the wall with turning device end rung
V1-Dm  built in the wall with turning device
V1-Dmk  built in the wall with turning device end rung
V2-Dmü mounted on the wall with turning device end glass
V2-Dmkü mounted on the wall with turning device end glass, rung
V1-Dmü built in the wall with turning device end glass
V1-Dmkü built in the wall with turning device end glass, rung
V2-Dm20  mounted on the wall, with 20 fm hourse
V1-Dm20  built in the wall, with 20 fm hourse
V2-Dm20-ü mounted on the wall, with 20 fm hourse end glass
V1-Dm20-ü built in the wall, with 20 fm hourse end glass

DIMENSIONS
TYPE Height Width Depht Weight
  mm mm mm kg
V2-Dm 650 650 250 42
V2-Dmk 650 650 250 39
V1-Dm 650 650 250 44
V1-Dmk 650 650 250 41
V2-Dmü 650 650 250 44
V2-Dmkü 650 650 250 41
V1-Dmü 650 650 250 46
V1-Dmkü 650 650 250 43
V2-Dm20 600 600 250 40
V1-Dm20 600 600 250 42
V2-Dm20-ü 600 600 250 42
V1-Dm20-ü 600 600 250 44
The given weight understadt along with accessorys.
