Csolnoki Szerelvénygyártó

TYPE

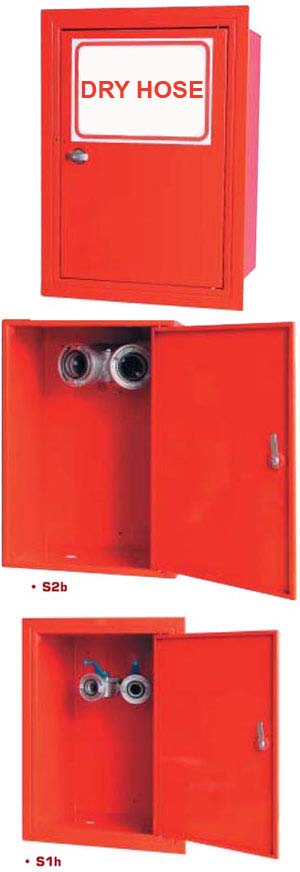

S2	mounted on the wall, for 2 pc wall hydrant
S1	built in the wall, for 2 pc wall hydrant
S2-b	mounted on the wall, collector for fire hose
S1-b	built in the wall, collector for fire hose
S2-h	mounted on the wall, for three branch distributor
S1-h	built in the wall, for three branch distributor

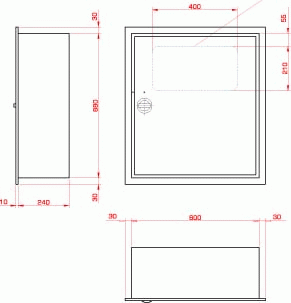

DIMENSIONS
TYPE	Height	Width	Depth	Wieght
	mm	mm	mm	kg
S2	680	600	250	11
S1	680	600	250	12
S2-b	650	450	350	10
S1-b	650	450	350	11
S2-h	650	450	400	12
S1-h	650	450	400	13
NOTE: You can order in different sizes from the above, but it is always necessary to assure easy handle of the accessories. The colour of the box can be any of the RAL-scale.
