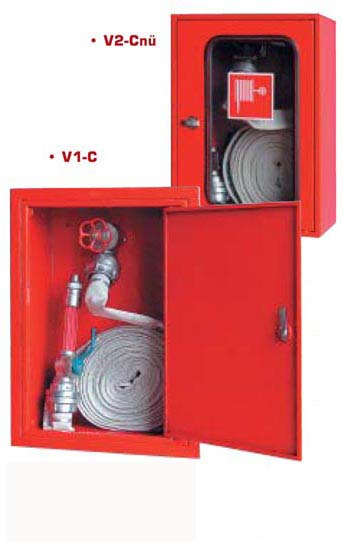

APPLICATION FIELD: This is for existing extinguishing water systems (V1-2E, V1-2C), dry hoses (S1-2C). E.g.: public buildings, hotels, stores. MATERIAL: steel plate of FeP-01 quality. CONSTRUCTION, DESIGN: It can be mounted on the wall (V2) or to build in the wall (V1). The frame is bended from one piece. The door can be easily opened (it can be of glass for need). It is painted in- and outside. The box type C can be supplied with hose turning device which makes the output easy. For the easy handling of the sprinkler there is a supporter, the so called tulip element. |
The box can have an opening for the hydrant at the back side or on the side wall.
The box is equipped with ball lock, so called clicket as standard, but also can be equipped with key lock. There is always possibility for lead seal. The standard colour is red. If there are additional fire fighting facilities they are separated with separation wall. |
| The complete hydrant box is equipped with the following accessories according to the relevant standard: | ||
| V1-C, V2-C | Pieces | V1-E, V2-E |
| Pressure hose type C | 1 | Pressure hose type E |
| Simple sprinkle C-12 k.h. | 1 | Simple sprinkle E-8 k.h. |
| Wall hydrant T2-C | 1 | Wall hydrant T2-E |
| DIMENSIONS | |||||||||
| Height | Width | Depth | |||||||
| Design | V2-E | V2-C | S2 | V2-E | V2-C | S2 | V2-E | V2-C | S2 |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| Standard | 600 | 650 | 680 | 450 | 450 | 600 | 200 | 250 | 250 |
| With turning device | 600 | 650 | 550 | 550 | 200 | 250 | |||
| With fire extinguisher holder | 650 | 735 | 250 | ||||||
| Turning device + Fire extinguisher holder | 650 | 835 | 250 | ||||||
|
NOTE: You can order in different sizes from the above, but it is always necessary to assure easy handle of the accessories. The colour of the box can be any of the RAL-scale. |
|||||||||
