MINI HYDRANT BOX: V2-Cm, V1-Cm, FROM MSZ EN 671-2

Mounted on the wall                                     Built in the wall

TYPE
V2-Cm mounted on the wall
V1-Cm built in the wall
V2-Cmü mounted on the wall with glass
V1-Cmü built in the wall with glass
V2-Cmko mounted on the wall with basket
V1-Cmko built in the wall with basket

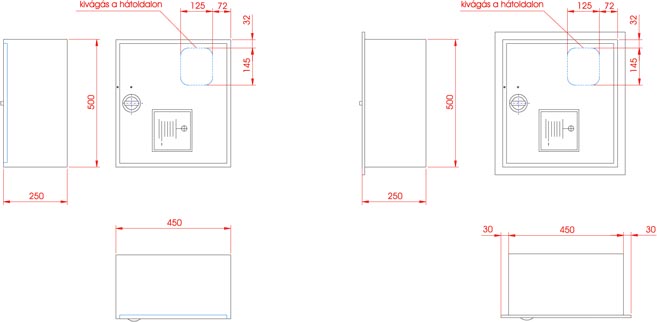

DIMENSIONS
TYPE Height Width Depht Weight
  mm mm mm kg
V2-Cm 500 450 250 16
V1-Cm 500 450 250 17
V2-Cmü 500 450 250 17
V1-Cmü 500 450 250 18
V2-Cmko 500 450 250 21
V1-Cmko 500 450 250 22
The given weight understadt along with accessorys.
