Csolnoki Szerelvénygyártó

KSZ COMBINED BOX, FROM MSZ EN 671-2

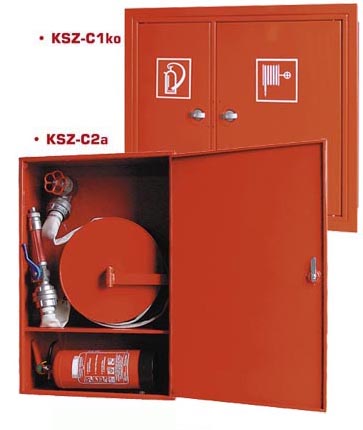

TYPE
KSZ-C2	mounted on the wall
KSZ-C1	built in the wall
KSZ-C2t	mounted on the wall with turning device
KSZ-C1t	built in the wall with turning device
KSZ-C2ko	mounted on the wall with basket
KSZ-C1ko	built in the wall with basket
KSZ-C2a	mounted on the wall with down distribution
KSZ-C1a	built in the wall with down distribution

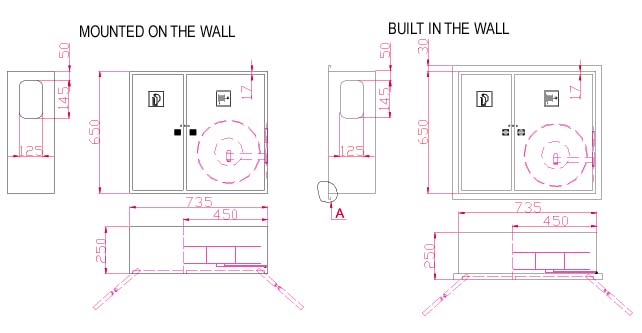

DIMENSIONS
TYPE	Height	Width	Depht	Weight
	mm	mm	mm	kg
KSZ-C2	650	735	250	32
KSZ-C1	650	735	250	34
KSZ-C2t	650	835	250	40
KSZ-C1t	650	835	250	42
KSZ-C2ko	650	835	250	37
KSZ-C1ko	650	835	250	39
KSZ-C2a	900	600	250	32
KSZ-C1a	900	600	250	34
The given weight understadt along with accessorys.
